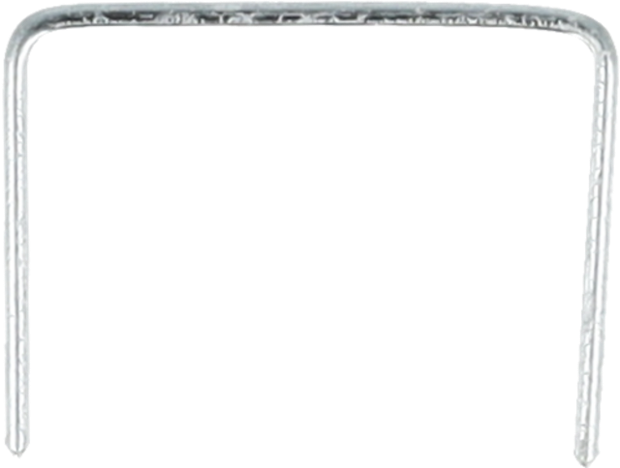

F niet 10mm

Tik op afbeelding om te zoomen

Omschrijving

F niet gegalvaniseerd, grootverpakking

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: F06BAAP
GTIN: 8715274003139

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Carbon met standaard treksterkte
Gauge: 20

Specificaties bevestigingsmiddelen

Afwerking: Standaard gegalvaniseerd
Coating: Standaard
Toepassingsomgeving: Binnen
Punt type: Beitel
Punthoek: 90 °
Niet type: Lichte nieten
Niet-dikte: 0.51 mm
Niet-draad afmeting: 0.9 mm
Niet-kroon breedte: 12.7 mm
Niet-binnen breedte: 11.43 mm
Niet serie: F niet
Aantal bevestigingsmiddelen per strip/rol: 111 - 113
Niet-lengte: 10.0 mm

Niet-technische specificaties

Verpakkingshoeveelheid: 24000

Logistieke kenmerken

Nettogewicht: 3.41 kg

Verwant gereedschap

Downloads

F06BAAP_nl_CommercialProductSheet_1.3_1752323283957 PDF 1 Mb
