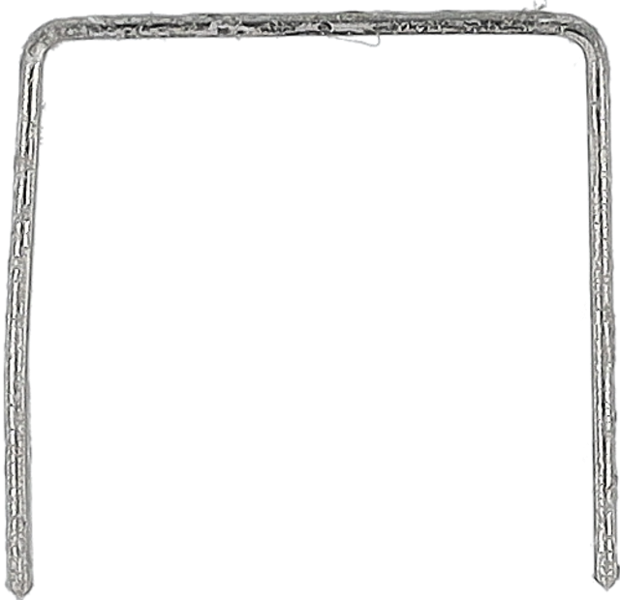

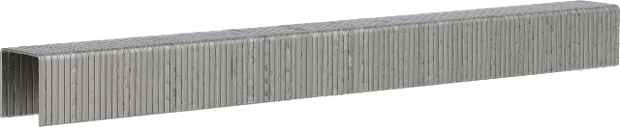

F niet AISI304, spreidpunt

Tik op afbeelding om te zoomen

Omschrijving

F niet AISI304, spreidpunt, grootverpakking

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: F06BGAP
GTIN: 8715274042626

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Gauge: 20

Specificaties bevestigingsmiddelen

Coating: Standaard
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 90 °
Niet type: Lichte nieten
Niet-dikte: 0.51 mm
Niet-draad afmeting: 0.9 mm
Niet-kroon breedte: 12.7 mm
Niet-binnen breedte: 11.43 mm
Niet serie: F niet
Aantal bevestigingsmiddelen per strip/rol: 111 - 113
Niet-lengte: 10.0 mm

Niet-technische specificaties

Verpakkingshoeveelheid: 12000

Logistieke kenmerken

Nettogewicht: 1.72 kg

Verwant gereedschap

Downloads

F06BGAP_nl_CommercialProductSheet_1.5_1748270957088 PDF 1 Mb
