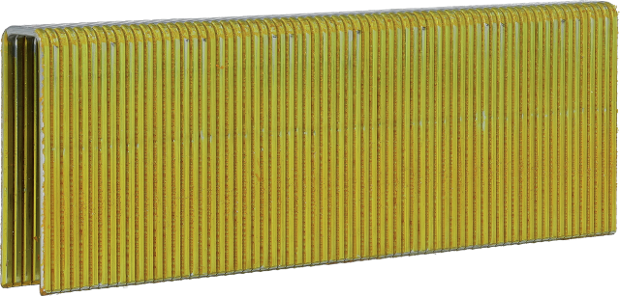

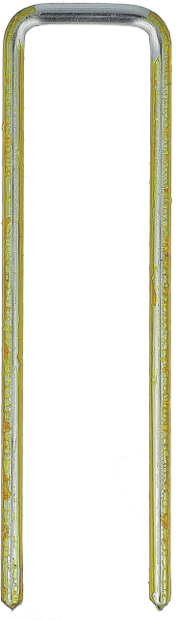

N niet 28mm

Tik op afbeelding om te zoomen

Omschrijving

N niet 12 micron, Sencoted

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: N14BXBB
GTIN: 8715274230276

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Carbon met standaard treksterkte
Gauge: 16

Specificaties bevestigingsmiddelen

Afwerking: Verzinkt 12 micron
Coating: Sencoted
Toepassingsomgeving: Overdekt
Punt type: Beitel
Punthoek: 70 °
Niet type: Zware nieten
Niet-dikte: 1.4 mm
Niet-draad afmeting: 1.51 mm
Niet-kroon breedte: 10.6 mm
Niet-binnen breedte: 7.67 mm
Niet serie: N niet
Niet-lengte: 28.0 mm

CE specificiaties

Karakteristieke kop doortrek parameter: 41.1 N/mm²
DOP No: N14BXBB
Karakteristieke buigmoment: 640.0 Nmm
Karakteristieke breuksterkte: 850.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 5.1 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 10000

Verwant gereedschap

Downloads

N14BXBB_nl_CommercialProductSheet_1.6_1752281648627 PDF 1 Mb
DOP VS-CPR-201305-S001 PDF 99 Kb
N14BXBB_nl_DeclarationOfPerformanceDoP_1.0eu_1748288953974 PDF 61 Kb
