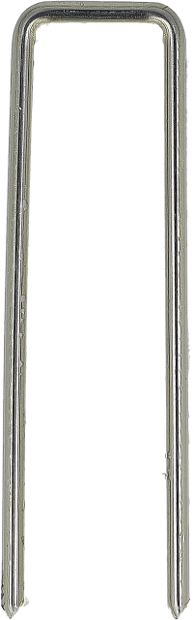

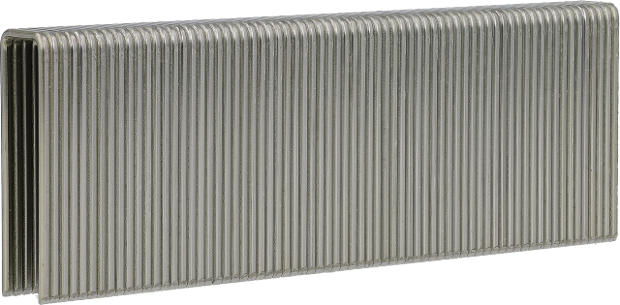

N niet 44mm AISI 304

Tik op afbeelding om te zoomen

Omschrijving

N niet AISI304

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: N19BGA
GTIN: 8715274289991

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Gauge: 16

Specificaties bevestigingsmiddelen

Coating: Standaard
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 70 °
Niet type: Zware nieten
Niet-dikte: 1.4 mm
Niet-draad afmeting: 1.51 mm
Niet-kroon breedte: 10.6 mm
Niet-binnen breedte: 7.67 mm
Niet serie: N niet
Aantal bevestigingsmiddelen per strip/rol: 69 - 71
Niet-lengte: 44.0 mm

CE specificiaties

Karakteristieke kop doortrek parameter: 41.1 N/mm²
CE bevestiging type: Vervormde niet
DOP No: N19BGA
Service klasse: 3
Coating type: Coating type 3
Coating lengte: 44.4 mm
Karakteristieke buigmoment: 640.0 Nmm
Karakteristieke breuksterkte: 850.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 5.1 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 10000

Verwant gereedschap

Downloads

N19BGA_nl_CommercialProductSheet_1.7_1752219535466 PDF 1 Mb
N19BGA_nl_DeclarationOfPerformanceDoP_1.0eu_1748259762036 PDF 62 Kb
