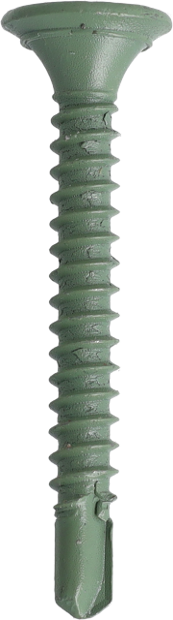

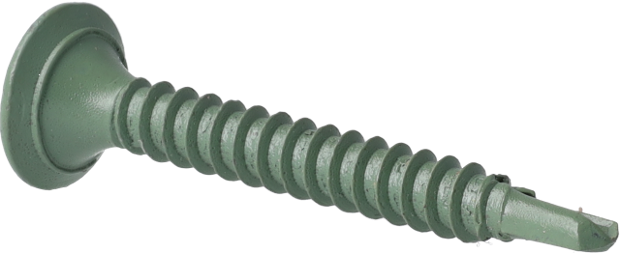

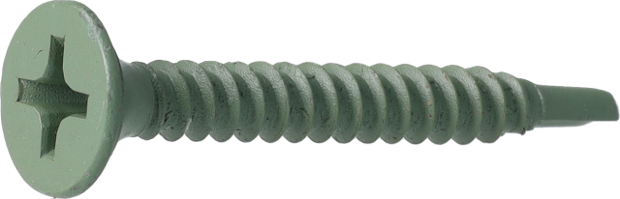

Gipsplaatschroef voor staal tot 3,0mm PH2 weatherex 3,5x30mm

Tik op afbeelding om te zoomen

Omschrijving

Gipsplaatschroef voor staal tot 3,0mm, weatherex II

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14566:2008+A1:2009

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: 35Q30MW
GTIN: 8718035000620

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte
Rotaties per minuut: 2300, 2500, 3000, 3300 RPM

Specificaties bevestigingsmiddelen

Afwerking: Weatherex II
Toepassingsomgeving: Buiten
Punt type: Zelfborend
Punthoek: 110 °
Schroef type kop: Trompetkop
Schroef recess: Philips 2
Schroefdraad type: Fijn

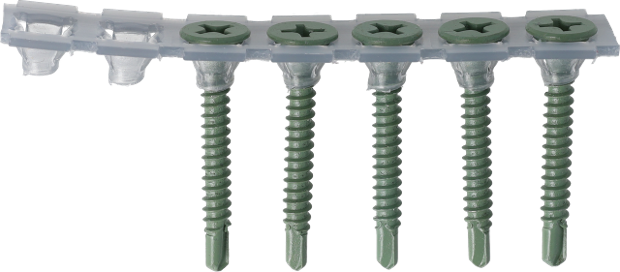

Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 30.0 mm
Schroefdiameter: 3.5 mm

CE specificiaties

DOP No: 35Q30MW
Materiaal notificatie op CE label: Niet-gelegeerd staal
Service klasse: 3
Binnendraad diameter: 2.65 mm
Draadlengte: 23.2 mm
Geharmoniseerde norm: EN 14566:2008+A1:2009

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Logistieke kenmerken

Nettogewicht: 2.1 kg

Verwant gereedschap

Downloads

35Q30MW_nl_CommercialProductSheet_1.9_1752213549536 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
35Q30MW_nl_DeclarationOfPerformanceDoP_1.1eu_1750104092165 PDF 59 Kb
