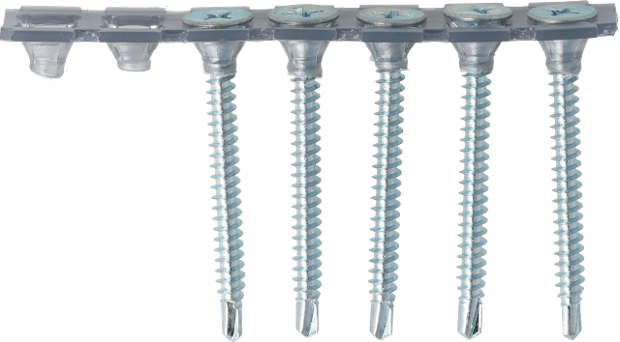

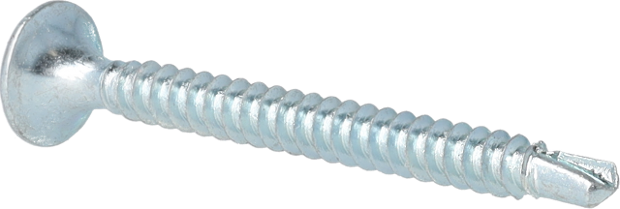

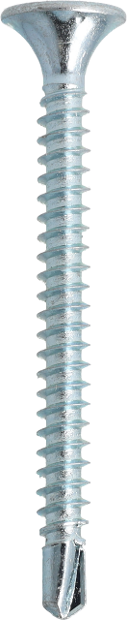

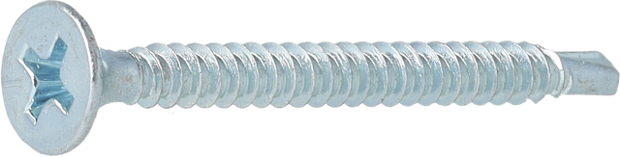

Gipsplaatschroef voor staal tot 3,0mm PH2 helder verzinkt 3,5x45mm

Tik op afbeelding om te zoomen

Omschrijving

Gipsplaatschroef voor staal tot 3,0mm, verzinkt

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14566:2008+A1:2009

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: 35Q45MC
GTIN: 8715274017860

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte
Rotaties per minuut: 2300, 2500, 3000, 3300 RPM

Specificaties bevestigingsmiddelen

Afwerking: Helder verzinkt
Toepassingsomgeving: Binnen
Punt type: Zelfborend
Punthoek: 110 °
Schroef type kop: Trompetkop
Schroef recess: Philips 2
Schroefdraad type: Fijn
Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 45.0 mm
Schroefdiameter: 3.5 mm

CE specificiaties

DOP No: 35Q45MC
Service klasse: 1
Binnendraad diameter: 2.65 mm
Draadlengte: 38.2 mm
Geharmoniseerde norm: EN 14566:2008+A1:2009

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Logistieke kenmerken

Nettogewicht: 2.5 kg

Verwant gereedschap

Downloads

35Q45MC_nl_CommercialProductSheet_1.7_1752210589212 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
35Q45MC_nl_DeclarationOfPerformanceDoP_1.1eu_1750103604471 PDF 59 Kb
