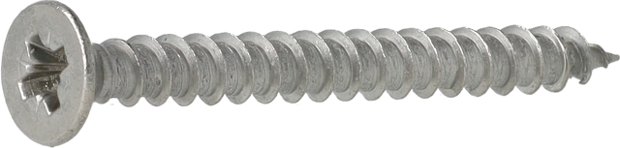

Schroef voor hout op hout ( spaanplaat ) PZ2 roestvast staal AISI 304 (A2) 4,0x45mm

Tik op afbeelding om te zoomen

Omschrijving

Schroef voor hout op hout (spaanplaat), roestvast staal AISI 304 (A2)

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: 40EA45MS
GTIN: 8715274302119

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Rotaties per minuut: 3300, 4000, 5000 RPM

Specificaties bevestigingsmiddelen

Toepassingsomgeving: Buiten
Punt type: Scherpe
Punthoek: 23 °
Schroef type kop: Plat
Schroef recess: Pozi-drive 2
Schroefdraad type: Fijn
Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 45.0 mm
Schroefdiameter: 4.0 mm

CE specificiaties

Binnendraad diameter: 2.85 mm
Draadlengte: 41.7 mm

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Verwant gereedschap

Downloads

40EA45MS_nl_CommercialProductSheet_1.2_1752290529885 PDF 1 Mb
40EA45MS_nl_DeclarationOfPerformanceDoP_1.0eu_1750145700307 PDF 57 Kb
