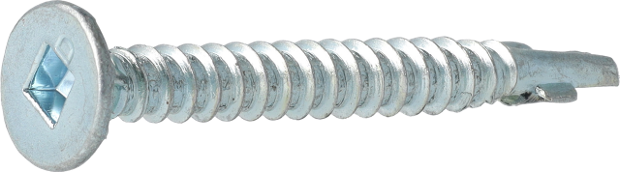

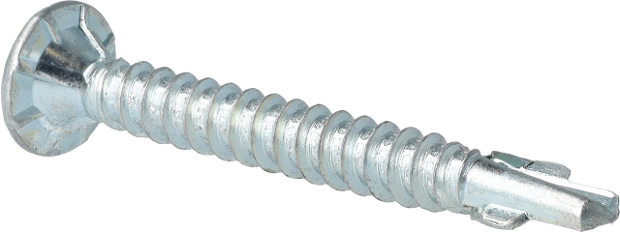

Schroef voor hout op staal tot 3,0mm SQ2 helder verzinkt 4,2x65mm

Tik op afbeelding om te zoomen

Omschrijving

Schroef hout op staal tot 3,0mm, verzinkt

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14566:2008+A1:2009

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: 42GS65MC
GTIN: 8718035018441

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte
Rotaties per minuut: 2300, 2500, 3000, 3300 RPM

Specificaties bevestigingsmiddelen

Afwerking: Helder verzinkt
Toepassingsomgeving: Binnen
Punt type: Zelfborend vleugels
Punthoek: 110 °
Schroef type kop: Platte kop met 8 nibs
Schroef recess: Square 2
Schroefdraad type: Fijn
Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 65.0 mm
Schroefdiameter: 4.2 mm

CE specificiaties

DOP No: 42GS65MC
Service klasse: 1
Binnendraad diameter: 3.5 mm
Draadlengte: 43.3 mm
Geharmoniseerde norm: EN 14566:2008+A1:2009

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Logistieke kenmerken

Nettogewicht: 5.99 kg

Verwant gereedschap

Downloads

42GS65MC_nl_CommercialProductSheet_1.5_1750165829723 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
42GS65MC_nl_DeclarationOfPerformanceDoP_1.1eu_1750165902525 PDF 59 Kb
