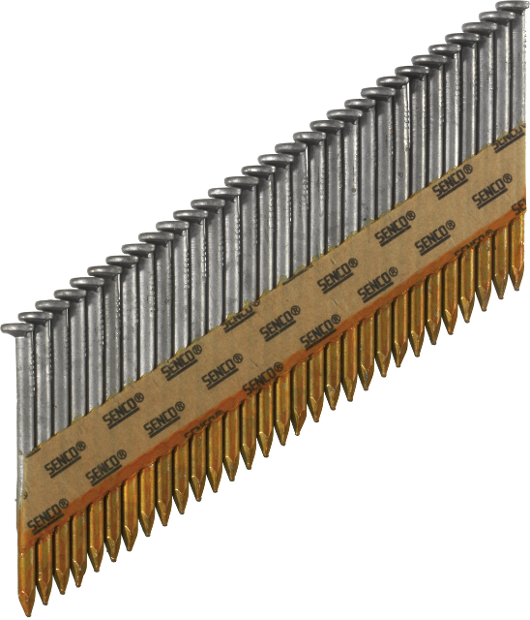

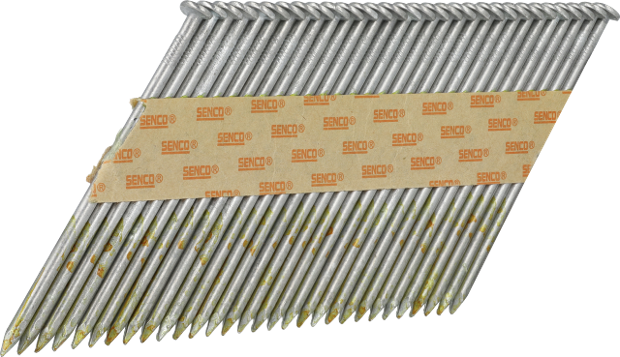

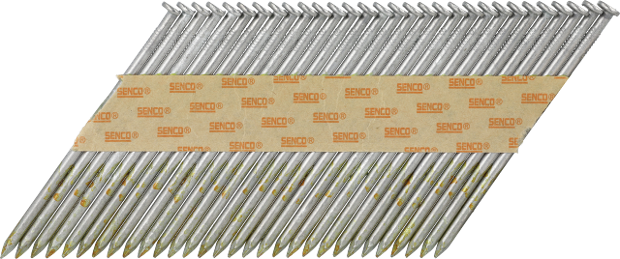

GC stripspijker glad 2,87x65mm

Tik op afbeelding om te zoomen

Omschrijving

2,87mm gladde stripspijker, HDG, Sencoted

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: GC55ASBKR
GTIN: 8715274026862

Technische specificaties

Rolhoek: 34 °
Verbindingstype: Papier gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Hot-Dipped galvanised 3
Coating: Sencoted
Toepassingsomgeving: Buiten
Nageltype: D-kop stripspijker
Nagelkop type: Geknipte kop
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Spijker diameter: 2.87 mm
Aantal bevestigingsmiddelen per strip/rol: 29 - 31
Spijker lengte: 65.0 mm

CE specificiaties

Karakteristieke kop doortrek parameter: 27.12 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: GC55ASBKR
Corrossieklasse in micron: 55
Service klasse: 3
Coating type: Coating type 3
Coating lengte: 41.0 mm
Kop oppervlakte: 30.0 mm
Karakteristieke buigmoment: 3054.0 Nmm
Karakteristieke breuksterkte: 695.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 2.45 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 2000

Logistieke kenmerken

Nettogewicht: 10.75 kg

Verwant gereedschap

Downloads

GC55ASBKR_nl_CommercialProductSheet_1.7_1752322177419 PDF 1 Mb
DOP VS-CPR-201305-S026 PDF 196 Kb
GC55ASBKR_nl_DeclarationOfPerformanceDoP_1.0eu_1729230349617 PDF 62 Kb
