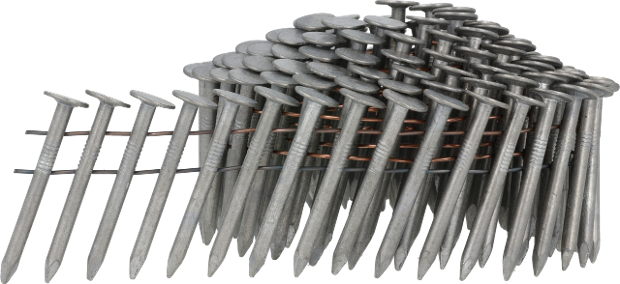

3,1mm conisch gerolde, gladde trommelspijker, HDG, glad, Retail

Tik op afbeelding om te zoomen

Omschrijving

3,1mm conisch gerolde, gladde trommelspijker, HDG, glad

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Technische specificaties

Rolhoek: 16 °
Rol type: Conisch
Verbindingstype: Draad gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Hot-Dipped galvanised 3
Coating: Standaard
Toepassingsomgeving: Buiten
Nageltype: Trommelspijkers
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max buitendiameter rol: 122 mm
Spijker diameter: 3.1 mm

Varianten
