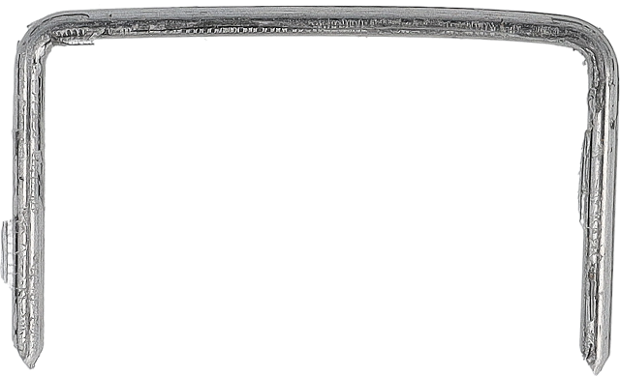

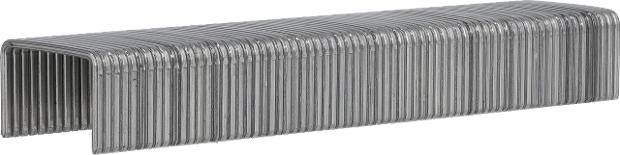

P niet 16mm

Tik op afbeelding om te zoomen

Omschrijving

P niet aluminium

Meer lezen Minder lezen

Toepassingen

Bekleding, Daken, Golfkarton toepassingen, Isolatieplaten, Meubelen, Kasten, Constructie, Hoekverbinding

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: P10BMA
GTIN: 8715274005546

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Aluminium
Gauge: 16

Specificaties bevestigingsmiddelen

Coating: Standaard
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 70 °
Niet type: Zware nieten
Niet-dikte: 1.4 mm
Niet-draad afmeting: 1.51 mm
Niet-kroon breedte: 26.3 mm
Niet-binnen breedte: 23.42 mm
Niet serie: P niet
Aantal bevestigingsmiddelen per strip/rol: 69 - 71
Niet-lengte: 16.0 mm

Niet-technische specificaties

Verpakkingshoeveelheid: 10000

Logistieke kenmerken

Nettogewicht: 2.74 kg

Verwant gereedschap

PS15XP Brede kroon nietmachine

Artikelnummer

9T2001N

Niet-lengte

16 - 38 mm

Rolhoek

0 °

Serie

XtremePro

Downloads

P10BMA_nl_CommercialProductSheet_1.5_1752209211192 PDF 1 Mb
