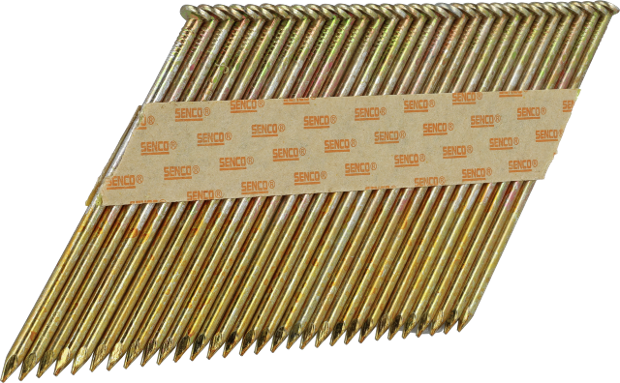

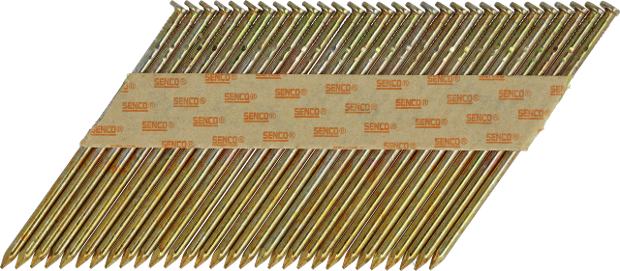

3,1mm gladde stripspijker, gegalvaniseerd, Sencoted

HC stripspijker glad 3,1x90mm

Tik op afbeelding om te zoomen

Omschrijving

3,1mm gladde stripspijker, gegalvaniseerd, Sencoted

Meer lezen Minder lezen

Toepassingen

Constructie, Bekleding, Ondervloeren, Vlonders, Spanten, Palleten en kratten

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: HC59AAB
GTIN: 4032933207320

Technische specificaties

Rolhoek: 34 °
Verbindingstype: Papier gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Standaard gegalvaniseerd
Coating: Sencoted
Toepassingsomgeving: Binnen
Nageltype: D-kop stripspijker
Nagelkop type: Geknipte kop
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Spijker diameter: 3.1 mm
Aantal bevestigingsmiddelen per strip/rol: 59 - 61
Spijker lengte: 90.0 mm

CE specificiaties

DOP No: HC59AAB
Geharmoniseerde norm: EN 14592:2008+A1:2012
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
Kop oppervlakte: 30.0 mm
Coating lengte: 60.0 mm
Coating type: Coating type 3
Karakteristieke buigmoment: 2570.0 Nmm
Karakteristieke uittrek parameter: 3.1 N/mm²
Karakteristieke kop doortrek parameter: 30.1 N/mm²
Karakteristieke breuksterkte: 633.0 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 3000

Logistieke kenmerken

Nettogewicht: 15.56 kg
