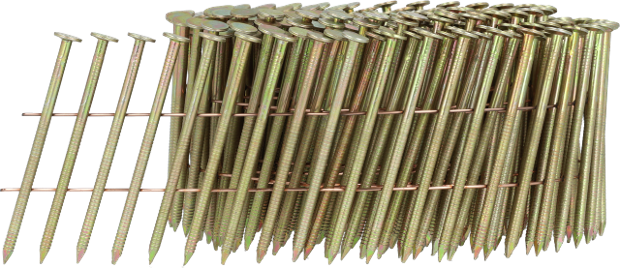

2,5mm plat gerolde, ring, trommelspijker, gegalvaniseerd, Sencoted

Tik op afbeelding om te zoomen

Omschrijving

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Technische specificaties

Rolhoek: 16 °
Rol type: Plat
Verbindingstype: Draad gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Standaard gegalvaniseerd
Coating: Sencoted
Toepassingsomgeving: Binnen
Nageltype: Trommelspijkers
Spijkerschacht type: Geringde schacht
Punt type: Diamant
Punthoek: 36 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max buitendiameter rol: 122 mm
Spijker diameter: 2.5 mm

Varianten

[{"id":"ItemFastenerCoilnail","facets":[{"translatedName":"Spijker diameter (mm)","attributeId":"ProductNailDiameterMm","facetId":"facets.facet-ProductNailDiameterMm","facetType":"CHECKBOX","attributePath":"facets.facet-ProductNailDiameterMm.value"},{"translatedName":"Spijkerschacht type","attributeId":"ProductNailShankType","facetId":"facets.facet-ProductNailShankType","facetType":"CHECKBOX","attributePath":"facets.facet-ProductNailShankType.value"},{"translatedName":"Verbindingstype","attributeId":"ProductCollationType","facetId":"facets.facet-ProductCollationType","facetType":"CHECKBOX","attributePath":"facets.facet-ProductCollationType.value"},{"translatedName":"Rolhoek (°)","attributeId":"ProductCollationAngle","facetId":"facets.facet-ProductCollationAngle","facetType":"CHECKBOX","attributePath":"facets.facet-ProductCollationAngle.value"},{"translatedName":"Draad materiaal","attributeId":"ProductWireMaterial","facetId":"facets.facet-ProductWireMaterial","facetType":"CHECKBOX","attributePath":"facets.facet-ProductWireMaterial.value"},{"translatedName":"Afwerking","attributeId":"ProductFinish","facetId":"facets.facet-ProductFinish","facetType":"CHECKBOX","attributePath":"facets.facet-ProductFinish.value"},{"translatedName":"Toepassingsomgeving","attributeId":"ProductApplicationEnvironment","facetId":"facets.facet-ProductApplicationEnvironment","facetType":"CHECKBOX","attributePath":"facets.facet-ProductApplicationEnvironment.value"}],"tileAttributes":["ProductNailDiameterMm","ProductNailShankType","ProductCollationAngle","ProductCollationType","ProductFinish","ProductWireMaterial","ProductApplicationEnvironment"],"compareAttributes":{"0":"ProductNailDiameterMm","1":"ProductNailShankType","2":"ProductCollationType","3":"ProductCollationAngle","4":"ProductWireMaterial","5":"ProductFinish","6":"ProductApplicationEnvironment"},"pdpAttributes":["ProductCollationAngle","ProductWoundingType","ProductCollationType","ProductWireMaterial","ProductFinish","ProductCoating","ProductTypeOfNail","ProductNailShankType","ProductPointType","ProductPointangle","ProductPitchMinMm","ProductPitchMaxMm","ProductInnerDiameterCoilMaxMm","ProductMaxOuterdiamerCoilMm","ItemNormVersion","ProductFeatures","ProductProductDescription","ItemArticleNumber","ItemGTIN","ItemPackageQuantity","ItemGrossWeightKg","ItemNetWeightKg","ItemAmountFastenersOnStripCoilRange","ItemNailLengthMm","ProductNailDiameterMm","ItemCEFastenerType","ItemNumberDeclarationOfPerformance","ItemMaterialNotificationOnCELabel","ItemProtectionLevelInMicron","ItemServiceClass","ItemCoatingType","ItemCoatingLength","ItemHeadCrossSectionalArea","ItemLengthOfThreadedPart","ItemCharacteristicYieldMoment","ItemCharacteristicWithdrawalParameter","ItemCharacteristicHeadPullThroughParameter","ItemCharacteristicTensileStrength","ItemApplications","ProductApplicationEnvironment","ProductHeadDiameterNominalMm"],"pdpTableValues":["ItemNailLengthMm","ItemPackageQuantity","ItemArticleNumber"],"pdpTableFacets":["ItemNailLengthMm"]}] masterCode:BLxxAABF-CN AND discontinuedProduct:false

2,5mm plat gerolde, ring, trommelspijker, gegalvaniseerd, Sencoted

Omschrijving

Norm

Specificaties

Technische specificaties

Specificaties bevestigingsmiddelen

Varianten

Geen varianten
