HD trommelspijker glad 3,1x90mm

Tik op afbeelding om te zoomen

Omschrijving

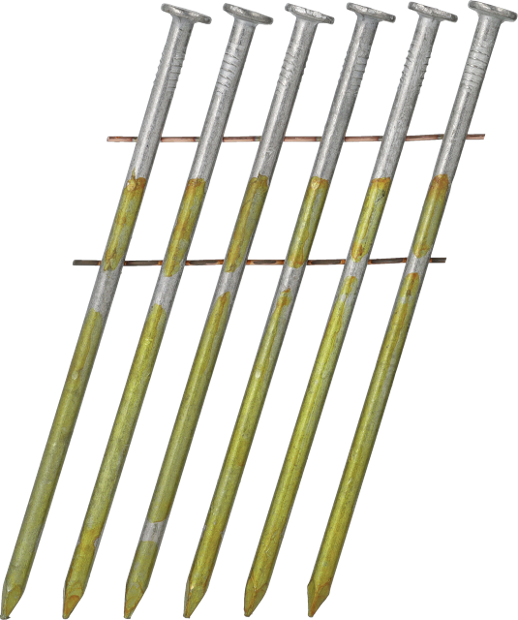

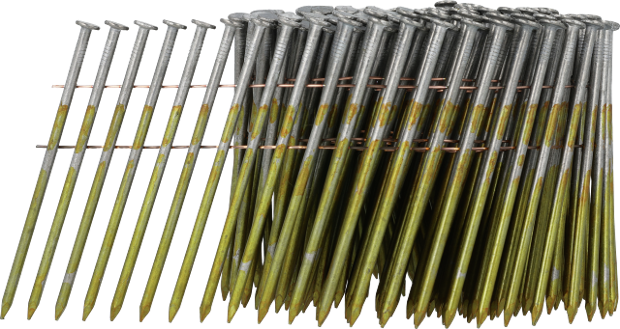

3,1mm plat gerolde, gladde trommelspijker, HDG, Sencoted

Meer lezen Minder lezen

Toepassingen

Constructie, Bekleding, Vlonders, Spanten

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: HD29ASBFR
GTIN: 8715274029573

Technische specificaties

Rolhoek: 16 °
Rol type: Plat
Verbindingstype: Draad gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Hot-Dipped galvanised 3
Coating: Sencoted
Toepassingsomgeving: Buiten
Nageltype: Trommelspijkers
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Pitch min: 8.4 mm
Pitch max: 8.4 mm
Max buitendiameter rol: 122 mm
Spijker diameter: 3.1 mm
Aantal bevestigingsmiddelen per strip/rol: 200 - 200
Spijker lengte: 90.0 mm

CE specificiaties

Karakteristieke kop doortrek parameter: 22.45 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: HD29ASBFR
Corrossieklasse in micron: 55
Service klasse: 3
Coating type: Coating type 3
Coating lengte: 61.5 mm
Kop oppervlakte: 37.0 mm
Karakteristieke buigmoment: 2640.0 Nmm
Karakteristieke breuksterkte: 620.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 2.9 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 900

Logistieke kenmerken

Nettogewicht: 5.02 kg

Verwant gereedschap

Downloads

HD29ASBFR_nl_CommercialProductSheet_1.7_1752220128193 PDF 1 Mb
HD29ASBFR_nl_DeclarationOfPerformanceDoP_1.0eu_1748462538287 PDF 62 Kb
