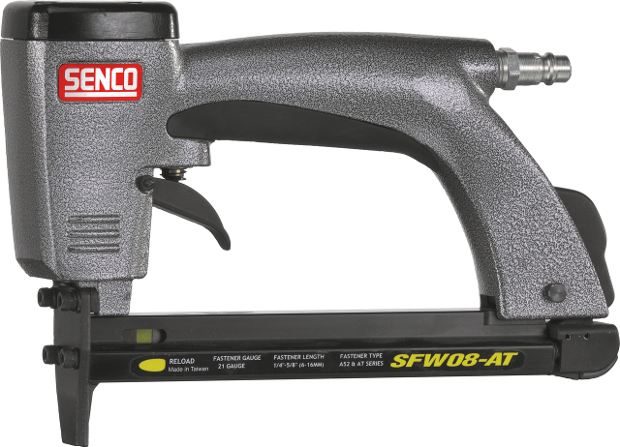

SFW08-C, lichte nietmachine

Tik op afbeelding om te zoomen

Omschrijving

De SFW08 lichte nietmachine is ideaal voor zowel vele klussen binnenshuis als bekleding.

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Serie: Pro
Artikelnummer: 2B2001N
GTIN: 0741474305573
Type: SFW08

Technische specificaties

Rolhoek: 0 °
Olievrij: Nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Lijm gebonden
Activering instelling: Single shot
Magazijn capaciteit: 190
Schoten / Seconde: 3
Luchtaansluiting: 1/4" inwendig
Luchtverbruik bij 60 schoten per minuut: 23.5 l/m
Werkdruk: 4.8 - 6.5 bar
Gauge: 22

Specificaties bevestigingsmiddelen

Niet type: Lichte nieten
Niet serie: C niet

Niet-technische specificaties

Garantie: 1 jaar
Afmetingen (DxWxH): 42 x 229 x 155 mm
Inclusief koffer: Nee

Logistieke kenmerken

Nettogewicht: 0.9 kg

Downloads

Manual SENCO stapler SFW08 PDF 2 Mb
Manual SENCO Staplers PDF 31 Mb
Part chart SENCO light wire stapler SFW08 PDF 780 Kb
2B2001N_nl_CommercialProductSheet_1.4_1727387978693 PDF 2 Mb
