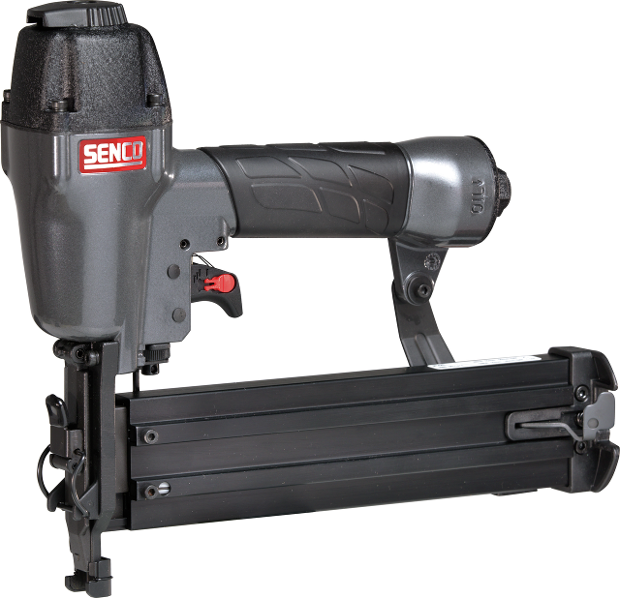

HNS5015P 3 in 1 nietmachine

Tik op afbeelding om te zoomen

Omschrijving

This 3IN1 stapler- brad nailer can accept 3 different fasteners in one single magazine, which allows multiple different applications.

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Serie: SemiPro
Article number: HNS5015P
GTIN: 8715274012100
Type: HNS5015P

Technische specificaties

Collation angle: 0 °
Oil free: Nee
Collation type: Glue collated
Firing mode: Dual / restrictive
Magazine capacity: 100
Shots / second: 7
Air inlet size: 1/4" female
Air consumption at 60 shots/minute: 39.6 l/m
Operating pressure: 4.8 - 7.6 bar
Sound pressure level: 89.0 Lpa
Sound power level: 100.0 Lwa
Vibration level: 1.9 m/s2
Gauge: 18

Specificaties bevestigingsmiddelen

Staple length: 16 - 38 mm
Staple serie: L staple
Alternative staple serie: M staple

Niet-technische specificaties

Warranty: 1 year
Dimensions (DxWxH): 62 x 279 x 257 mm
Includes case: Ja

Logistieke kenmerken

Net weight: 1.3 kg

Verwante bevestigingsmiddelen

Downloads

Manual SENCO HNS5015P PDF 1 Mb
Part chart SENCO HNS5015P PDF 433 Kb
HNS5015P_nl_CommercialProductSheet_1.1_1727337728897 PDF 2 Mb
