SN1602, FRH rondkop spijkermachine

Tik op afbeelding om te zoomen

Omschrijving

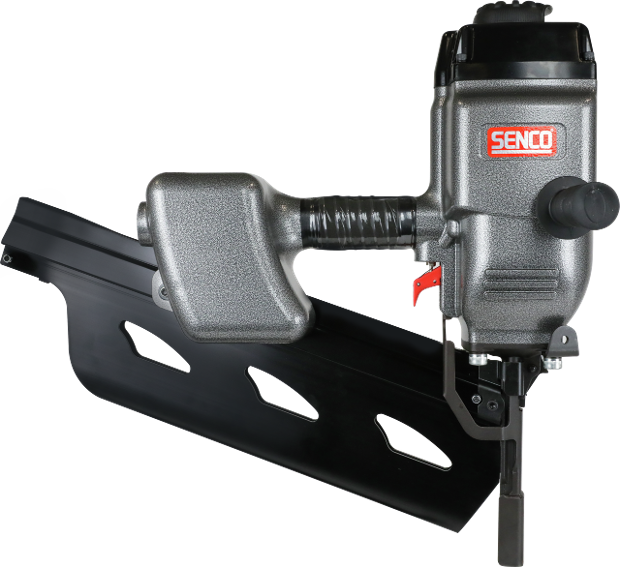

De SN1602 is compact vergeleken met andere 160mm spijkermachines, met een comfortgrip om vermoeidheid te voorkomen en een extra handvat voor meer controle en nauwkeurigheid.

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Serie: Pro
Artikelnummer: 7D2001N
GTIN: 8718035003942
Type: SN1602

Technische specificaties

Rolhoek: 21 °
Olievrij: Nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden
Activering instelling: Restrictive
Magazijn capaciteit: 56
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 297.0 l/m
Werkdruk: 6 - 8 bar
Geluidsdrukniveau: 95.9 Lpa
Geluidskrachtniveau: 132.0 Lwa
Trillingniveau: 8.3 m/s2

Specificaties bevestigingsmiddelen

Nageltype: Rondkop stripspijker
Kop diameter: 7.24 - 9.19 mm
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 100 - 160 mm
Spijker gladde schacht diameter: 3.8 - 4.6 mm

Niet-technische specificaties

Garantie: 1 jaar
Afmetingen (DxWxH): 140 x 560 x 500 mm
Inclusief koffer: Nee

Logistieke kenmerken

Nettogewicht: 7.0 kg

Verwante bevestigingsmiddelen

Downloads

Manual SENCO stripnailers PDF 25 Mb
Manual SENCO Stripnailers PDF 24 Mb
SN1602 stripnailer 21° Part chart PDF 1 Mb
7D2001N_nl_CommercialProductSheet_1.5_1752292841765 PDF 2 Mb
