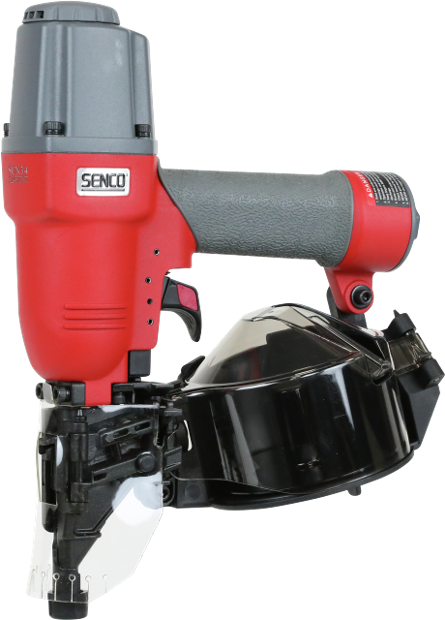

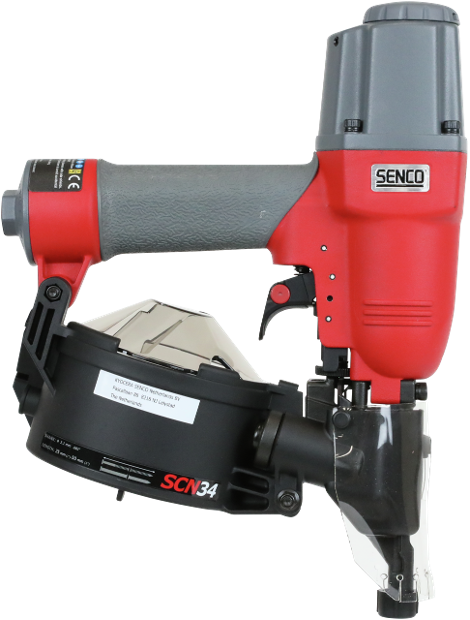

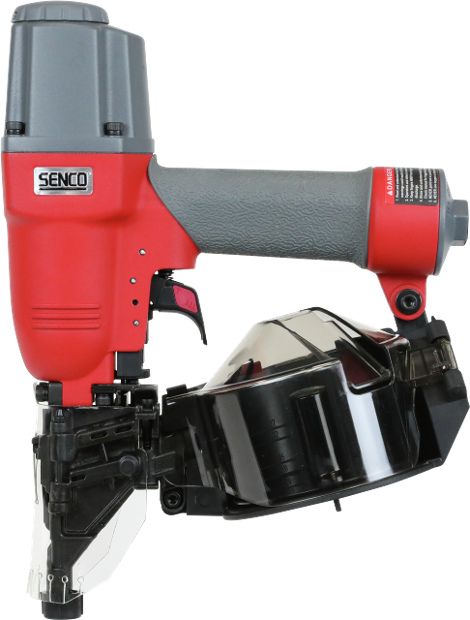

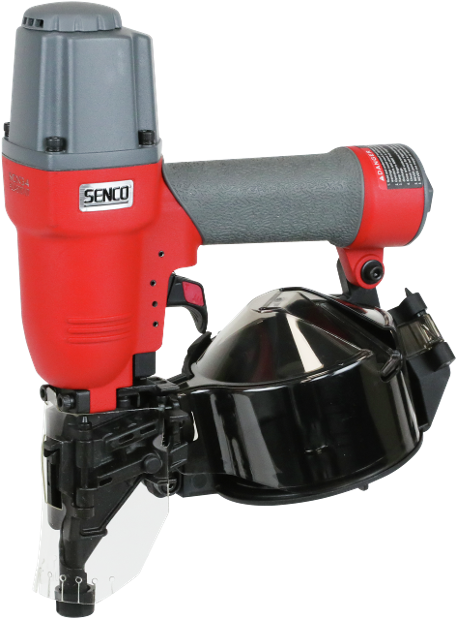

SCN34, trommelspijkermachine, dual

Tik op afbeelding om te zoomen

Omschrijving

De SCN34 is met zijn lichtgewicht en compacte ontwerp makkelijk te manouvreren en hij schiet spijkers van 25mm tot 50mm lengte.

Meer lezen Minder lezen

Toepassingen

Palleten en kratten, Gevelbekleding, Houtconstructies

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Serie: Pro
Artikelnummer: SCN34
GTIN: 8715274012261
Type: SCN34

Technische specificaties

Rolhoek: 16 °
Rol type: Conisch
Rol type alternatief: Plat
Olievrij: Nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 9mm
Activering instelling: Selectable
Magazijn capaciteit: 400
Schoten / Seconde: 4
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 43.8 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 83.1 Lpa
Geluidskrachtniveau: 94.6 Lwa
Trillingniveau: 3.81 m/s2

Specificaties bevestigingsmiddelen

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 25 - 50 mm
Spijker gladde schacht diameter: 1.6 - 2.1 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 25 - 50 mm
Spijker geringde schacht diameter: 1.6 - 1.6 mm
Pitch min: 6.0 mm
Pitch max: 6.0 mm
Max buitendiameter rol: 100 mm

Niet-technische specificaties

Garantie: 1 jaar
Afmetingen (DxWxH): 108 x 260 x 302 mm

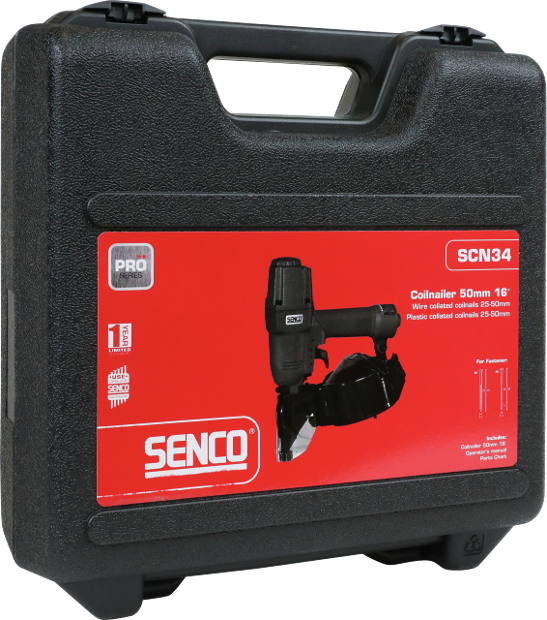

Inclusief koffer: Ja

Logistieke kenmerken

Nettogewicht: 1.55 kg

Verwante bevestigingsmiddelen

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN34 PDF 2 Mb
SCN34_nl_CommercialProductSheet_1.5_1752238503286 PDF 2 Mb
