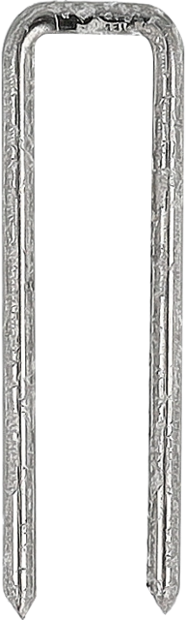

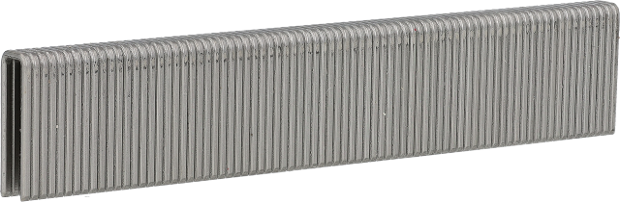

L niet AISI304

Tik op afbeelding om te zoomen

Omschrijving

L niet AISI304

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Article number: L10BGA
GTIN: 8715274003467

Technische specificaties

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 18

Specificaties bevestigingsmiddelen

Coating: Plain
Application environment: Outdoor
Point type: Chisel
Pointangle: 70 °
Staple type: Medium wire staple
Staple thickness: 1.04 mm
Staple wire size: 1.17 mm
Staple crown width: 6.4 mm
Staple inside width: 3.34 mm
Staple serie: L staple
Amount fasteners on strip/coil: 78 - 80
Staple length: 16.0 mm

Niet-technische specificaties

Package quantity: 5000

Logistieke kenmerken

Net weight: 1.43 kg

Verwant gereedschap

Downloads

L10BGA_nl_CommercialProductSheet_1.3_1748273604463 PDF 1 Mb
