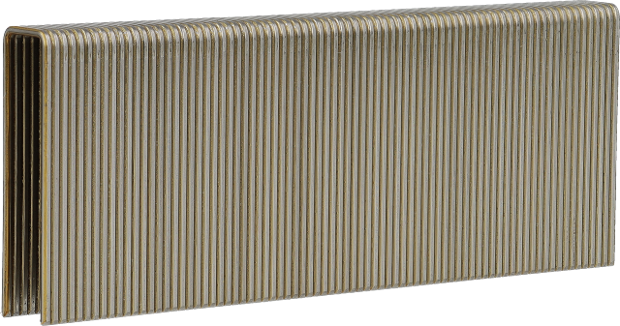

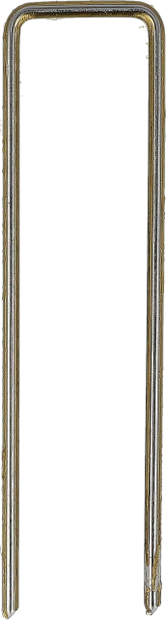

M niet 38mm

Tik op afbeelding om te zoomen

Omschrijving

M niet AISI304, Sencoted

Meer lezen Minder lezen

Toepassingen

Kasten, Kratten, Lades, Stofferen, Systeemplafond, Underlayment, Lattenrooster, Bekleding

Meer lezen Minder lezen

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: M17BGB
GTIN: 8715274004792

Technische specificaties

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Gauge: 18

Specificaties bevestigingsmiddelen

Coating: Sencoted
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 70 °
Niet type: Middelzware nieten
Niet-dikte: 1.04 mm
Niet-draad afmeting: 1.17 mm
Niet-kroon breedte: 9.5 mm
Niet-binnen breedte: 7.67 mm
Niet serie: M niet
Aantal bevestigingsmiddelen per strip/rol: 78 - 80
Niet-lengte: 38.0 mm

Niet-technische specificaties

Verpakkingshoeveelheid: 10000

Logistieke kenmerken

Nettogewicht: 7.41 kg

Verwant gereedschap

HNS5015P 3 in 1 nietmachine

Artikelnummer

HNS5015P

Niet-lengte

16 - 38 mm

Rolhoek

0 °

Serie

SemiPro

Downloads

M17BGB_nl_CommercialProductSheet_1.4_1752303832431 PDF 1 Mb
